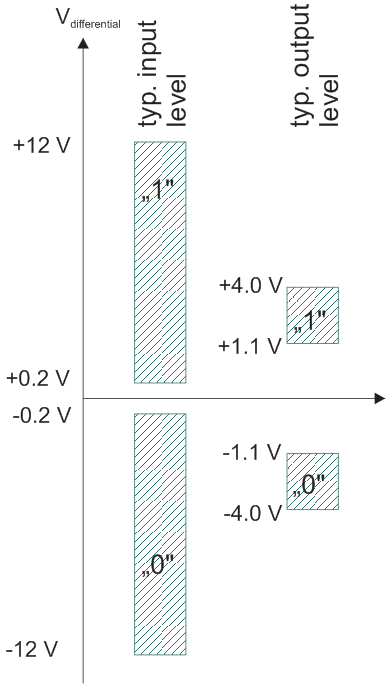

EP5001 - Interface signal level
The SSI interface works with differential signal levels conforms to RS422 / RS485.
The “typical output level” applies for a load of 60 ohm or higher.
Single-ended signal levels are not supported.
