Control loop

The following graphic shows the position control loop used and the intervention points of the drive parameters, which are explained in the following chapters.

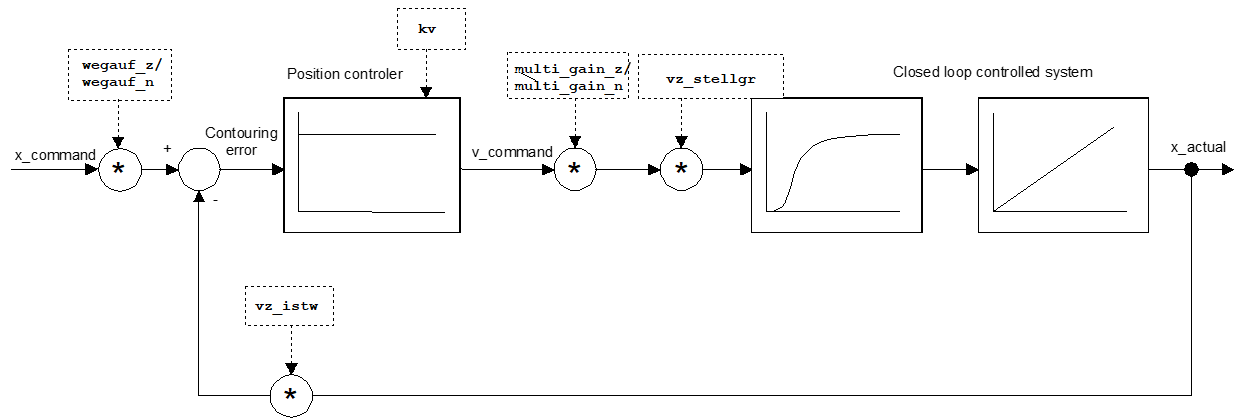

Fig.1: Overview of the position control loop for conventional drives
