Structure

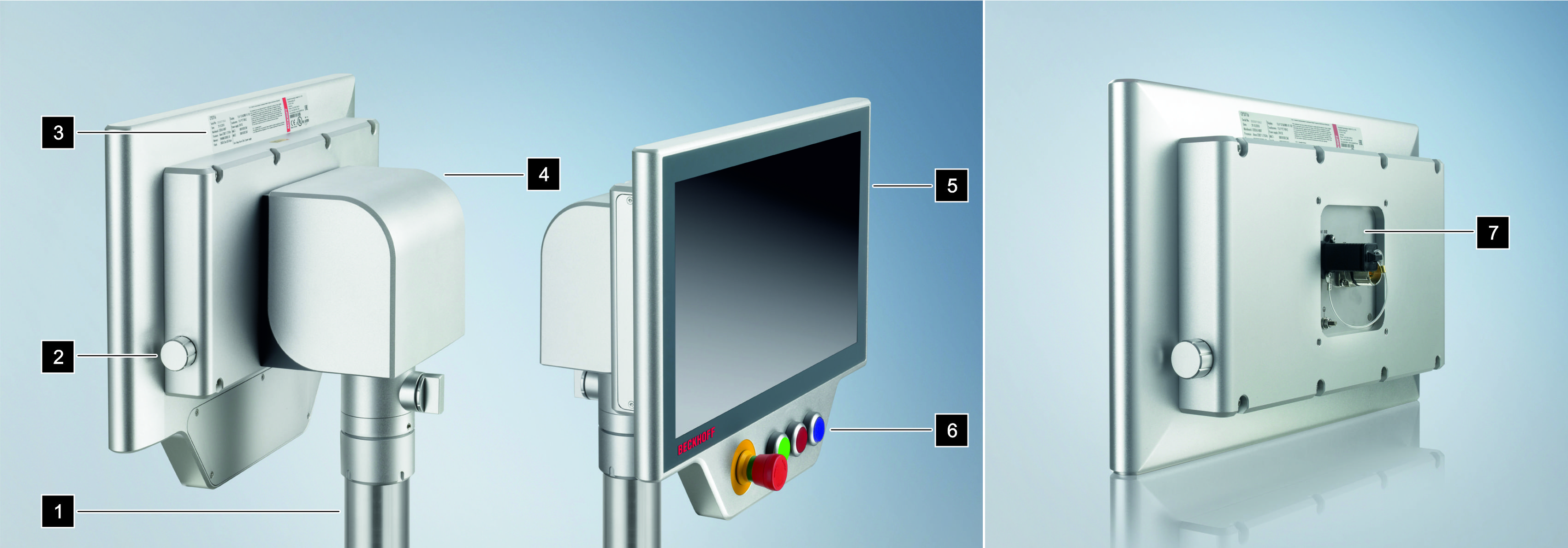

Figure 2 shows the device configuration as an example of all CP37xx-1600 versions.
Fig.2: StructureNo. | Component | Description |
|---|---|---|
1 | Mounting arm tube | Mounting arm tube for installation from below or above |
2 | USB interface under screw cap | Connection of peripheral devices |
3 | Name plate | Information on the equipment of the panel PC |
4 | Optional mounting arm adapter | Adapter for installation on the mounting arm tube |
5 | Display and touch screen glass | Operation of the panel PC |
6 | Optional push button extension | Control of central machine or system functions |
7 | Connection compartment | Access to interfaces |
