EPxxxx | Industrial housing · 0 次阅读

Scaling, limits and formatting

  • Following the calculation of the resistance value, the scaling and the limit bits are evaluated.
  • The result is formatted in accordance with the set presentation and copied into the process image.

The box uses the following calculation rule

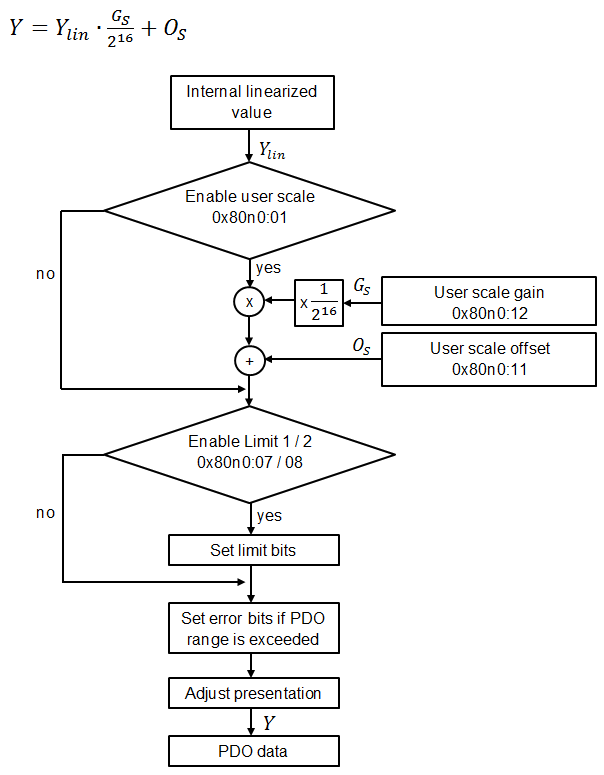

Scaling, limits and formatting 1:
Data flow: user scaling, limit evaluation, error bits and formatting

With the values:



Index in the CoE directory with
n: channel number with 0 ≤ n ≤ 3 (channel 1 - 4)

Ylin: Output value in 1/100 °C

GS: User Scale Gain

0x80n0:12

OS: User Scale Offset

0x80n0:11

Y: Output value PDO
