Power Measurement

The power measurement subsystem enables the measurement of electrical data for a three-phase supply network. Power is supplied via the 3-phase KL3403 power measurement terminal.

Settings

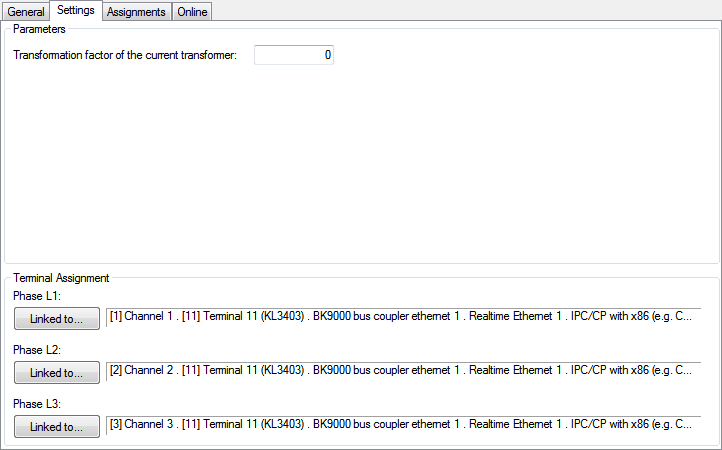

Power Measurement 1:

Parameters

  • Transformation factor of the current transformer: Input field for the transformation factor of the current transformer.

Pressing the Linked to...-button opens a dialog, where the channels of an power measuring terminal can be assigned to this module.

Online

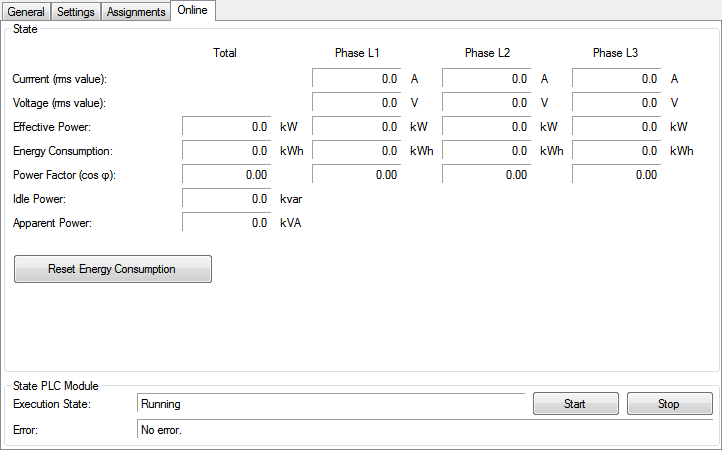

Power Measurement 2:

Commands

  • Reset Energy Consumption: Resets the energy consumption values.

State

  • Current (rms value): In sum current.
  • Voltage (rms value): Voltage value of all phases.
  • Effective Power: In sum effective power.
  • Energy Consumption: Overall energy consumption.
  • Power Factor (cos φ): Power factor of all phases.
  • Idle Power: Overall idle power.
  • Apparent Power: In sum apparent power.

State PLC Module

  • Execution State: Shows if the module is running or stopped.
  • Error: In case of an error, the error code and the error parameter are displayed in this box.
  • Start/Stop: Starts/stops the module.
