Process image - EP1809-0021

Channel 1 to Channel 16

You will find the 16 digital inputs to the module (here using the EP1809-0021 as an example) under Channel 1 to Channel 16.

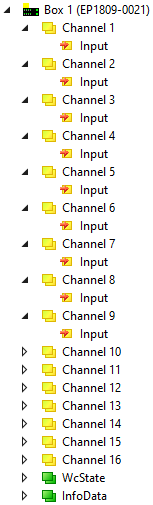

Fig.6: EP1809-0021, Process image
