RS485 connection

Nine-pin D sub

The cable is connected via a 9-pin D-Sub connector on the left side of the Bus Terminal Controller.

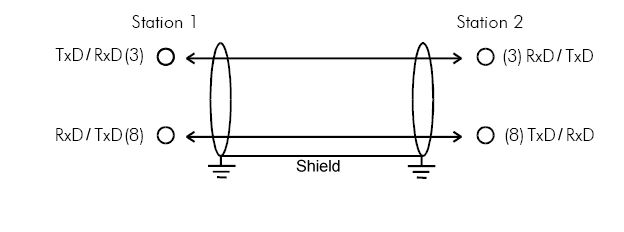

A two-core cable with shielding should be used. The shielding should be connected to signal ground (GND).

Pin assignment of the RS485 D-sub socket

Cable

The BC8050 can establish connections to several devices; the maximum permitted cable length is 1200 m.
