EK9500 EtherNet/IP™ topology sample
EK9500
The construction of the EK9500 can take place in a line, with adherence to the following points:
- Maximum 20 couplers one behind the other
- No switches should be used in the line

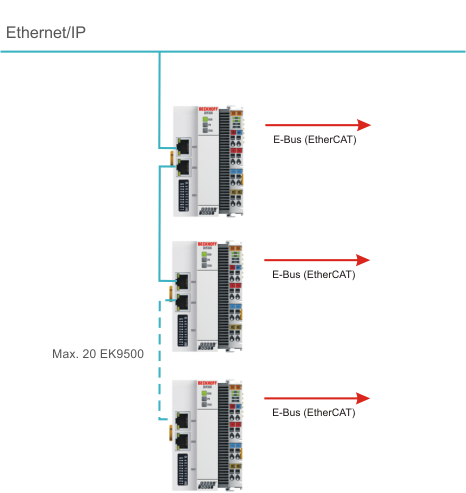

Fig.13: EtherNet/IP™ topology
