| CU20xx, CU22xx – Ethernet switch |

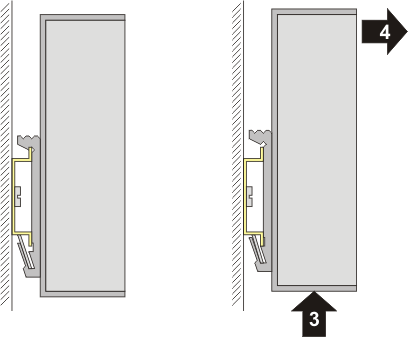

Mounting and demounting
The CU20xx und CU22xx switches are fastened to the mounting surface at 35 mm with the aid of a mounting rail according to EN 50022.

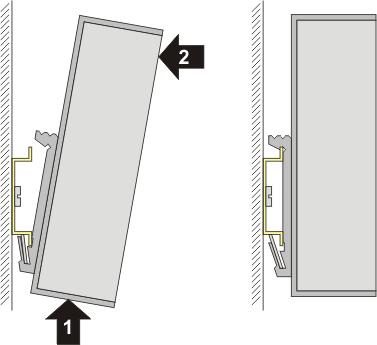

Mounting
- ▪
- Fit the mounting rail to the planned assembly location.
- ▪
- Suspend the switch on the mounting rail with the spring on the lower side of its latching flange.
- ▪
- Press the switch upwards (1).
- ▪
- Press the upper side of the switch (2) against the assembly surface until it latches in the mounting rail.
- ▪
- Attach the cable.
Mounting
