Microstepping

Microstepping can be specified via registers R46 and R48 to R63 or via the current table dialog in the KS2000 configuration software.

Microstepping

Steps per quarter period

Full step

1

Half step

2

1/4 step

4

1/8 step

8

1/16 step

16

1/32 step

32

1/64 step

64

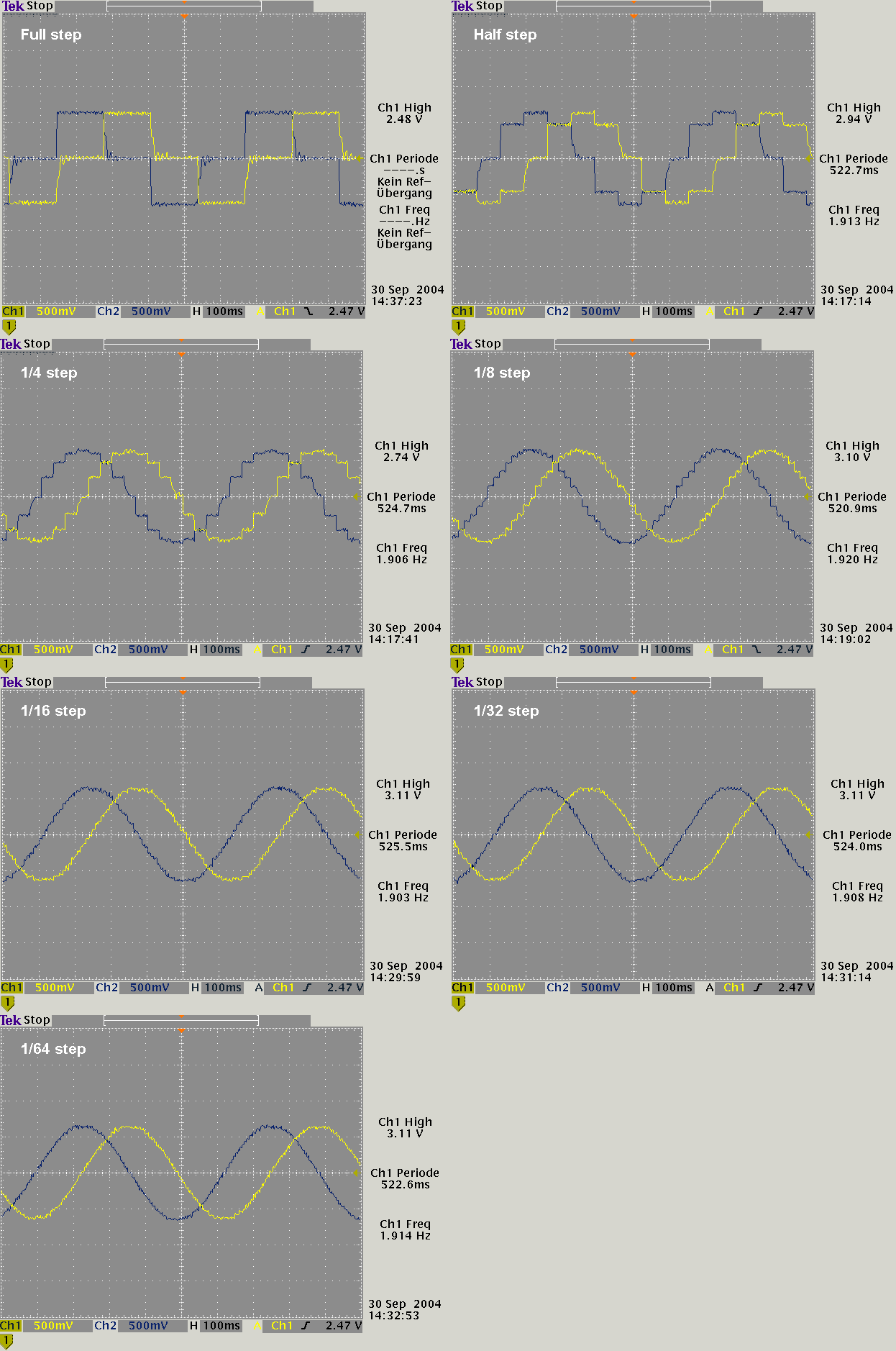

Microstepping 1:
Current microstepping
