Netmon and Wireshark®

You can evaluate the data traffic between the IPC and CU2508-0022 using Netmon or Wireshark®. Wireshark® supports the ESL protocol since version 1.4.2.

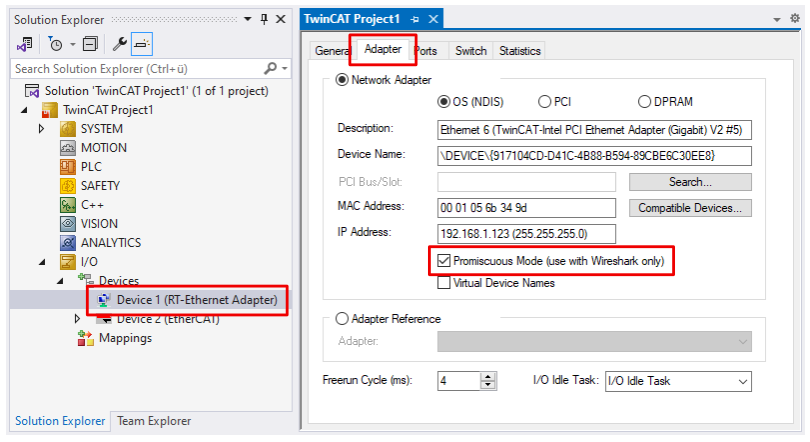

To do this, check the “Promiscuous Mode” box in the “Adapter” tab. The Ethernet frames are then copied to the Windows NDIS layer.
