Configuration comparison

The TwinCAT System Manager allows a comparison between the configuration according to the *.tsm file and the IO combination that is actually connected to the EtherCAT master. The comparison takes place automatically if devices are found during the scanning process.

Fig.155: Context menu "Scan Boxes"

An overview appears showing the differences; for further information see chapter ‘Configuration creation – online scan’

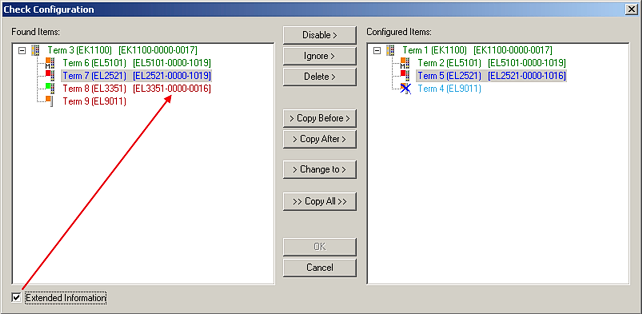

Fig.157: Configuration comparison
