Belt drive

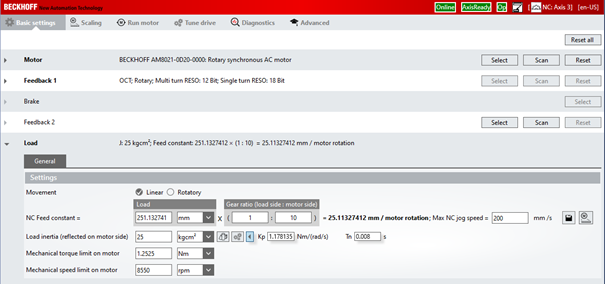

Here, a belt drive and a gear unit with a speed reducing ratio of i = 10 have been configured. The drive pinion has a diameter of 80 mm. The NC feed constant results as follows: 80 mm * Pi / 10 = 25.132 mm.
