Introduction

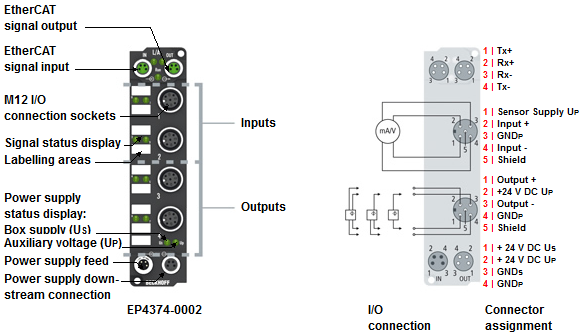

EtherCAT Box with analog inputs and outputs

EP4374-0002 has two analog inputs and two analog outputs. The signal range can be individually set for each analog input and output:

• -10…+10 V
• 0…10 V
• 0…20 mA
• 4…20 mA

Technical data
Process image
Signal connection
