Topology

Star, line and tree topology

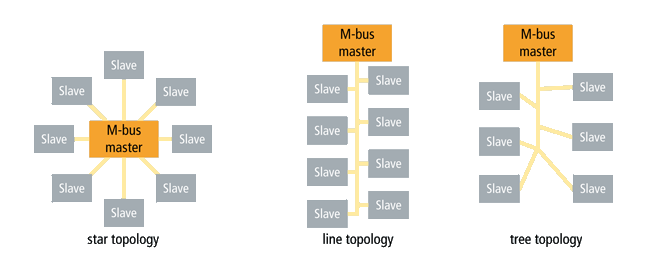

Topology 1:
Star, line and tree topology

Ring topology

Topology 2:
Ring topology

Ring topology is not supported

Although ring topology is possible with the M-Bus, it is not recommended and therefore not supported by Beckhoff.
