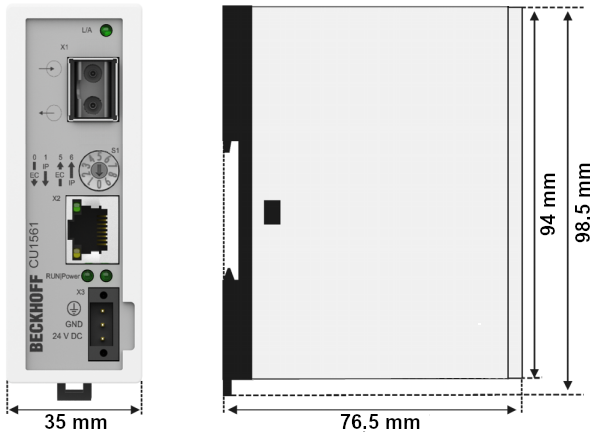

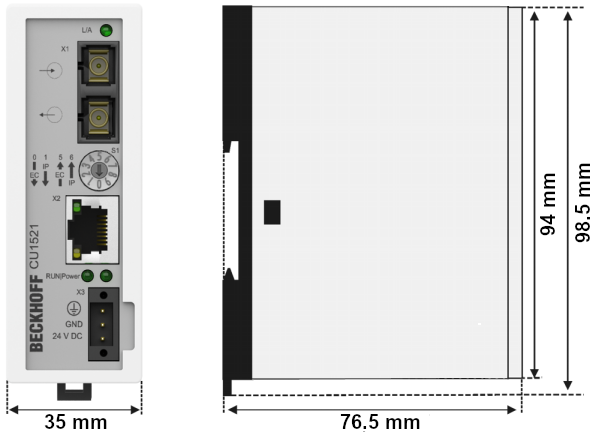

Dimensions

Space requirement in the control cabinet

• The RJ45 connector increase the depth depending on their design and the Ethernet cable used.
• Above the mounting rail an additional height of approx. 10 mm is required to enable latching of the switch onto the rail.
