AX8000 | Multi-axis servo system - Function description · 0 次阅读

Components used

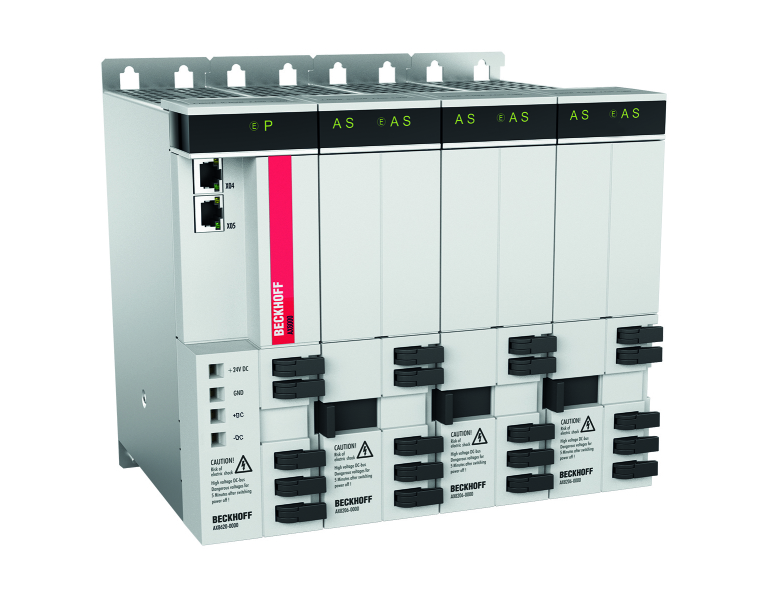

Components used 1:

AX8000 Multi-axis servo system

Optionally with power supply module

AX8620-0000 Power supply module 20 A DC
AX8640-0000 Power supply module 40 A DC
AX8525-0000 Combination module 80 A DC
AX8540-0000 Combination module 80 A DC

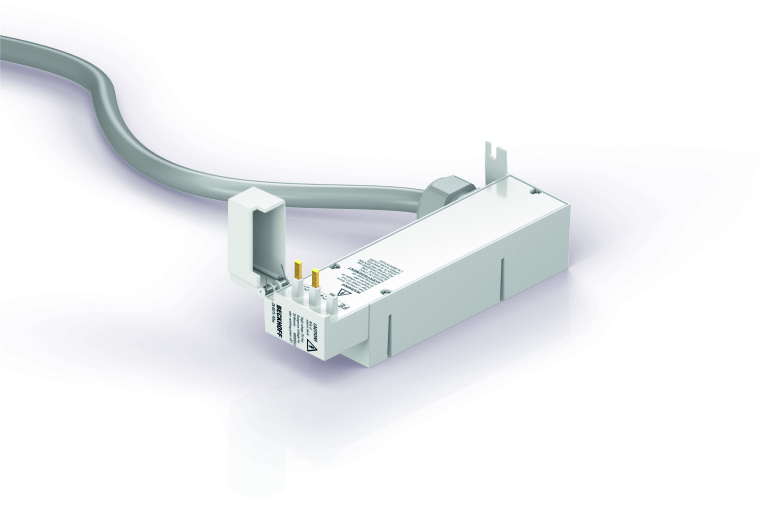

Components used 2:

DC link integration

depending on the power supply module used:

AX8620: ZK4875-9004-xxxx DC link connection cable
AX8640: ZK4875-9007-xxxx DC link connection cable
AX8525 / AX8540: Two-wire connection directly from the combination module

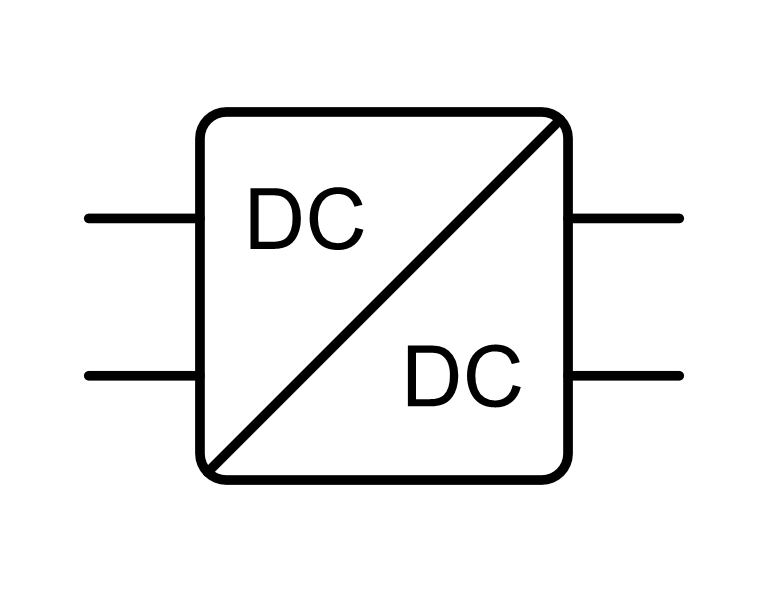

Components used 3:

DC/DC Converter

Input voltage: 320…848 V DC

Output voltage: 24 V DC

e.g. Siemens SITOP PSU400M
