Operation on two phases

The power supply can also be used on two phases of a three-phase system. Such a phase-to-phase connection is permissible as long as the supply voltage is below 240V+10%.

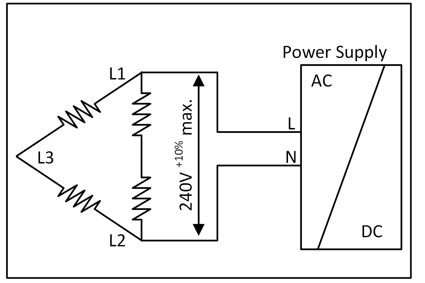

Operation on two phases 1:
Operation on two phases

Make sure that the conductor connected to the N terminal is fused appropriately.
