SGND Connection

Notice

Notes on the SGND connection

The copper rings around the holes are connected to SGND (see chapter Top layer).

  • SGND connection to the mounting plate shall be implemented as metal bolts building a direct connection between signal distribution board and mounting plate (see following figure).

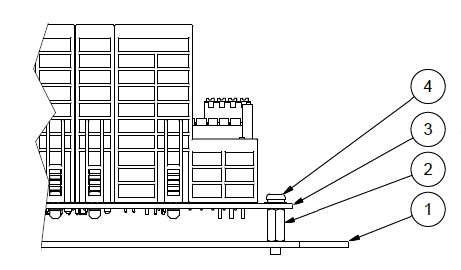

SGND Connection 1:

Direct connection to the mounting plate via metal bolts

1

Mounting plate

2

Bolt e. g. DIA M3x10 (Steel, galvanized)

3

Signal distribution board

4

Combination screw e. g. M3x8 T10 (Steel, galvanized)
