  3. Pinout

Pinout

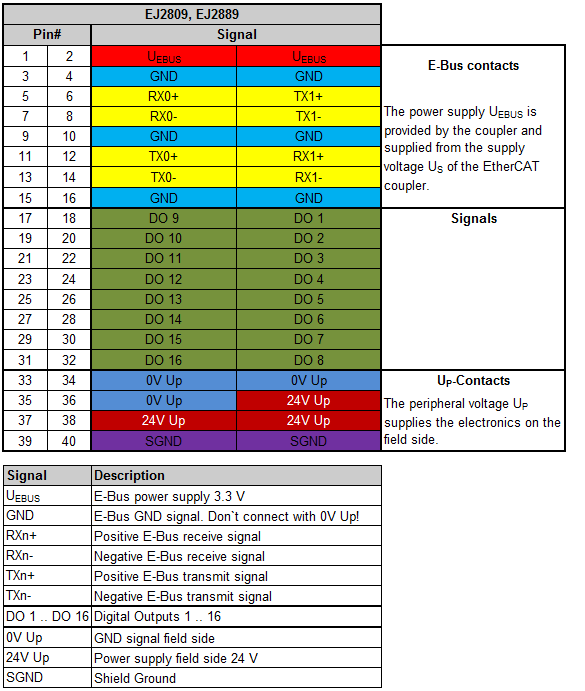

Pinout 1:
EJ2809, EJ2889 - Pinout

The PCB footprint can be downloaded from the Beckhoff homepage (EJ2809, EJ2889).

Note
Damage to devices possible!

Before installation and commissioning read the chapters Installation of EJ modules and Commissioning!
