EL3008-0003, EL3008-0005 | 8-channel analog input, voltage, ±3 V/±5 V, 16 Bit, cascaded · 0 次阅读

Quick commissioning of the analog inputs

The 8 analog channels are set ready for operation ex factory with default settings. Experienced users can read immediately by:

  • Scan the terminal in TwinCAT (or add it manually in the configuration, paying attention to the EtherCAT Revision!)
  • Reload in TwinCAT

the measured value (here in the figure: approx. 3 V per channel) and link it to the PLC.

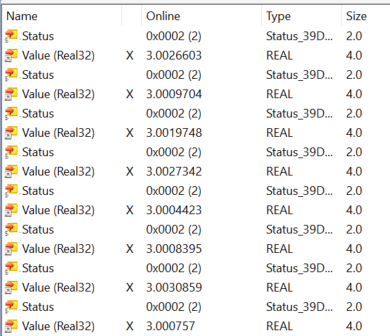

Quick commissioning of the analog inputs 1:Fig.139: Reading the measured value

Default settings

  • Measuring range 3 V (EL3008-0003) or 5 V (EL3008-0005), measuring range can be switched off "None" but cannot be changed
  • 50 Hz filter on (update rate 600 µs)
  • Real32-PDO

To gain a deeper understanding of the capabilities of this device, it is recommended that you read the following sections.
