TE3500 | Analytics Workbench · 0 次阅读

Variance filter

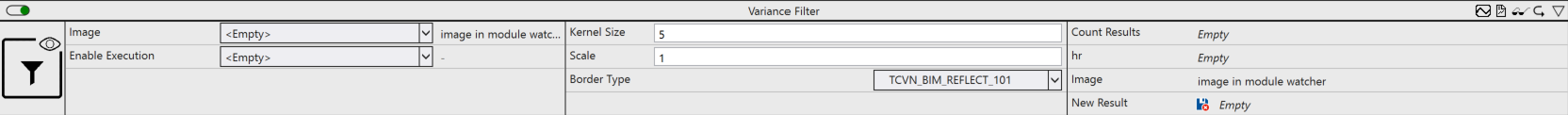

Variance filter 1:

Calculates the local variance of an image.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • Kernel Size: Size of the filter kernel.
  • Scale: Scaling factor for the calculated variance values.
  • Border Type: Treatment of the image border.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • Image: Initial image of the algorithm.
  • New Result: (Optional) TRUE if a new result is provided.
