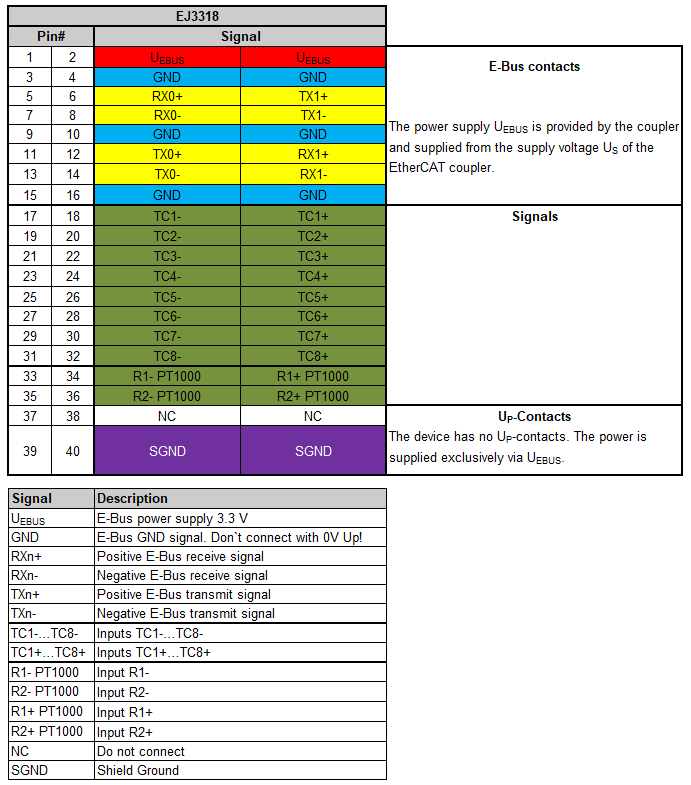

EJ3318 - Connection
The PCB footprint can be downloaded from the Beckhoff homepage.
Notice | ||
 | Damage may result!
| |
 | Earthed thermocouples Observe for earthed thermocouples: Differential inputs max. ±2 V to ground! |
