PS9401-2420-0000 | Redundancy Module 12 - 28 V DC, 20 A · 0 次阅读

Power loss





DC 12V

DC 24 V



Power loss

Typ.

0.6W

0.6W

At 2 x 5 A input current

Typ.

2.0W

2.0W

At 2 x 10 A input current

Standby power loss

Typ.

0.11W

0.21W

With no output current

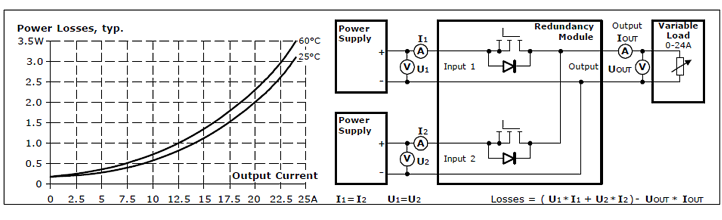

Power loss 1:
Power loss if both inputs draw the same current

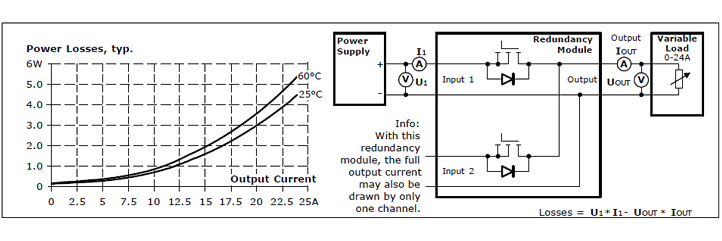

Power loss 2:
Power loss if only one input is used
