EJ8906-0005 | EJ starter board (EtherCAT plug-in modules not included) · 0 次阅读

EtherCAT plug-in modules of slot 4

EtherCAT plug-in modules of slot 4 1:

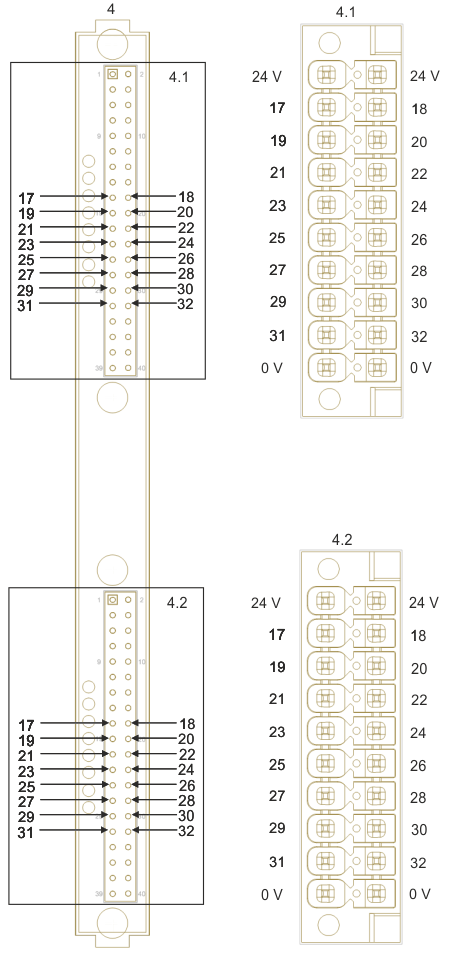

EJ8906-0005 - Pin numbering Slot 4.1 and 4.2, Pin numbering of connector 4.1 and 4.2

Note

EtherCAT plug-in modules of slot 4 2:

Description of the pinout for EtherCAT plug-in modules

For the description of the pinout see chapter “Pinout” in the documentation of the EtherCAT plug-in modules (www.beckhoff.com/EJxxxx).
