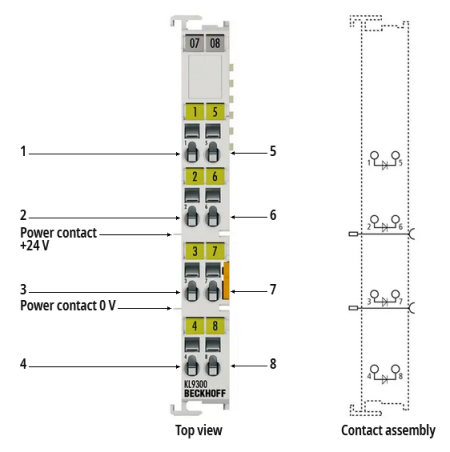

KL9300 – contact assignment
Terminal point, no. | Connector for |
|---|---|
1 | diode 1, anode |
2 | diode 2, anode |
3 | diode 3, anode |
4 | diode 4, anode |
5 | diode 1, cathode |
6 | diode 2, cathode |
7 | diode 3, cathode |
8 | diode 4, cathode |
