AX5000 | Digital Compact Servo Drive · 0 次阅读

X13: AX5160 and AX5172



Terminal point

Connection

Tightening torque of the terminal points

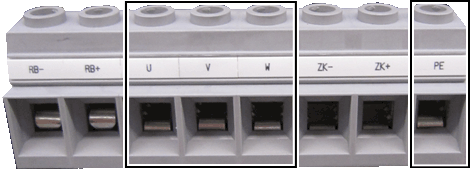

X13: AX5160 and AX5172 1:

U

Motor connection U




2.5 Nm to 4.5 Nm

V

Motor connection V

W

Motor connection W

PE

Protective conductor
