Configuring the network interface card

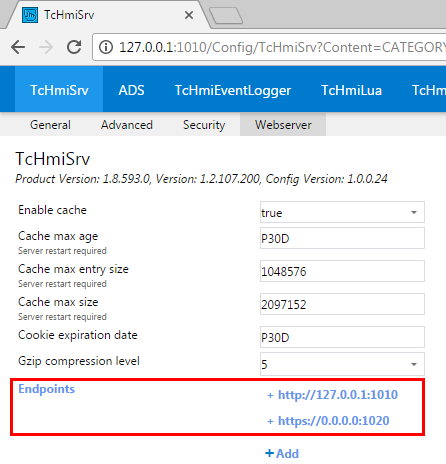

Under TcHmiSrv/Webserver/Endpoints you can configure under which network interface cards, port numbers and protocols the HMI server can be reached.
- Protocols supported: HTTP/HTTPS
- Binding to all network interface cards:
Static IP address of a network card: Binding to associated cards.
127.0.0.1: Only local access is allowed, remote connections are rejected. - Port number: Freely selectable, should not already be accessed by the operating system.
