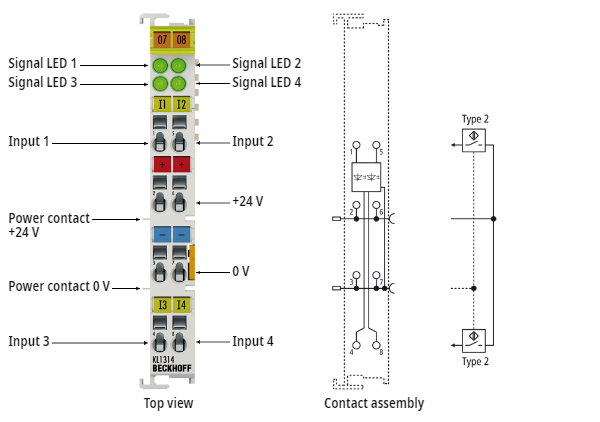

KL1314 - Introduction

Bus terminal, 4-channel digital input, 24 V_DC, 0.2 ms, type 2

The KL1314 digital input terminal acquires the binary 24 V_DC control signals from the process level and transmits them, in electrically isolated form, to the higher-level automation device. The bus terminal has four channels, whose signal state is displayed by light emitting diodes.

• KL1314 - Technical data
• KL1314 - LEDs and connection
