Task configuration
Task configuration
- Has a free-running task been created?
- Or a "special sync task" used?
- Cycle time to base 2?
- 1ms, 2ms, 4ms, 8ms, ....
- Further notes in chapter Sync Task

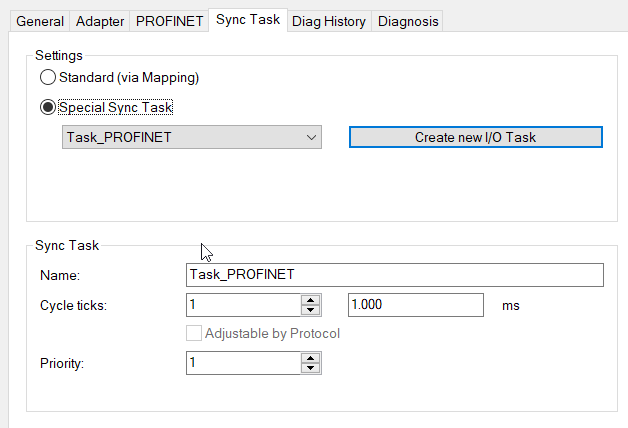

Fig.63: Setting "Special Sync TaskEK9300 | PROFINET Bus Coupler for EtherCAT Terminals · 0 次阅读
Fig.63: Setting "Special Sync Task
