Trigger logic for KL3362

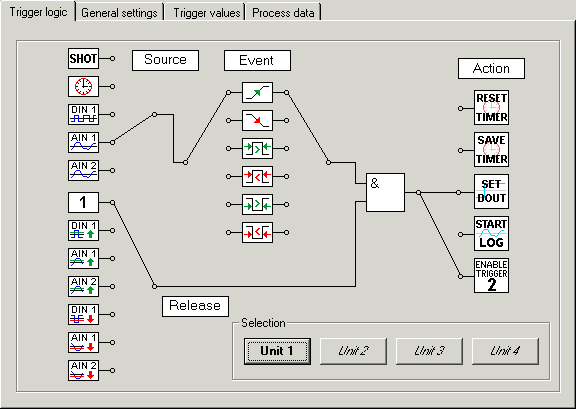

In the Trigger logic tab, you can specify the trigger behavior of the KL3362 oscilloscope terminal.

• Source
  Here you can select the trigger source (see Trigger logic in detail).

• Event
  Here you can specify the trigger event (see Trigger logic in detail).

• Enable
  Connect the lower input of the And gate with the desired function in order to specify when the And gate should switch through a trigger pulse (see Trigger logic in detail).

• Action
  Connect the output of the And gate with the desired function in order to specify which task should be triggered (see Trigger logic in detail).
