EL6633 | EtherCAT Terminal, 2-port communication interface, PROFINET RT, controller/i-device · 0 次阅读

Interface submodule

The type of communication can always be set on the interface submodel (at present RTClass1 or RTClass3). The only exception is in the case that a generally valid RTClass was set via the Auto Config... menu.

If communication takes place over RTClass3, then the PLL window can additionally be set at the interface.

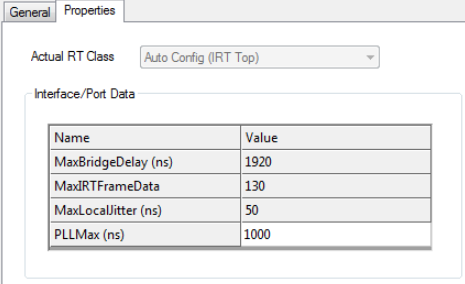

Interface submodule 1:
