Password protection for user calibration

The data for the User calibration (offset/gain) are located in the CoE in the group together with the other channel-specific setting data.

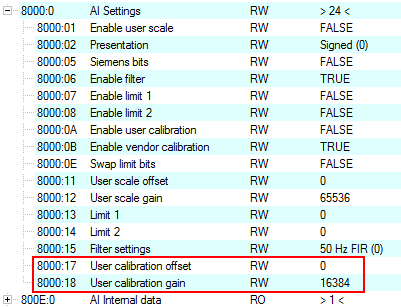

Fig.237: specific data for EL30xx, channel 1

These data are also overwritten by a RestoreDefaultParameter (CoE 0x1011:01) or CompleteAccess access to 0x80n0.

From the FW revision specified above these two values are protected by an additional password in CoE 0xF009

Fig.238: Password protection

Use

• 0x12345678 activates the password protection --> object indicates ‘1’ (switched on)
  User Calibration gain and offset can no longer be changed; there is no error message with a write access!
• 0x11223344 deactivates the password protection --> object indicates ‘0’ (switched off)

This function is available according to the table below
