EL2502-0010 - Commissioning and operation

The pulse width and frequency of a 24 V_DC binary signal with a maximum load capacity of 0.5 A can be changed via the digital pulse width modulation output (PWM).

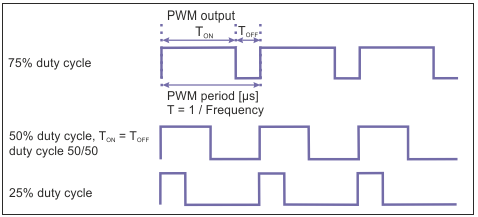

Fig.127: Setting pulse-pause ratio using the example of duty cycle 25%, 50% and 75%

• Basic operation modes and process data
• Safe state in the event of a bus error (watchdog)
• Switch channel to high-resistance (Tristate)
• Object description and parameterization
