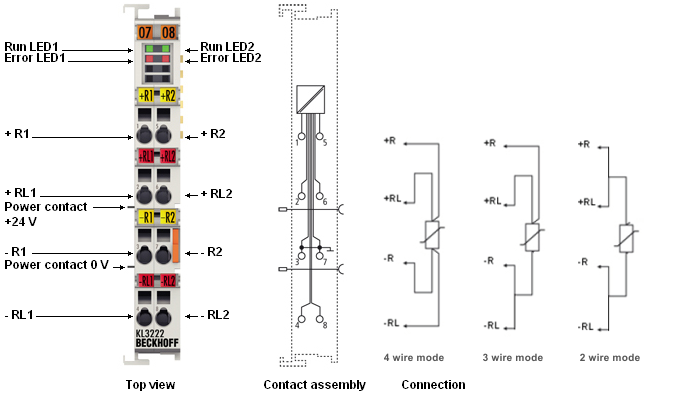

Contact assignment
| |
Risk of injury through electric shock and damage to the device! Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals! |
KL3222, KS3222
Terminal point | No. | Connection for |
|---|---|---|
+R1 | 1 | Channel 1: +R |
+RL1 | 2 | Channel 1: +RL |
-R1 | 3 | Channel 1: -R |
-RL1 | 4 | Channel 1: -RL |
+R1 | 5 | Channel 2: +R |
+RL1 | 6 | Channel 2: +RL |
-R1 | 7 | Channel 2: -R |
-RL1 | 8 | Channel 2: -RL |
