Contours File Source

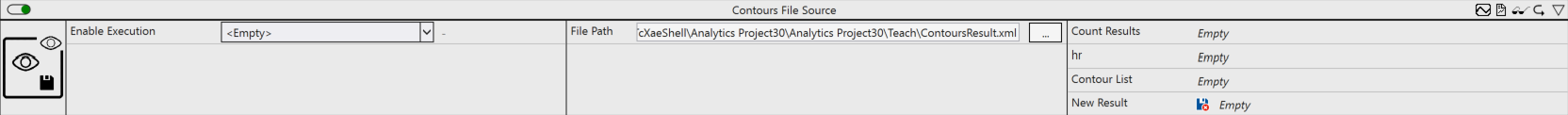

Contours File Source 1:

Loads contours from the file system. These can be saved using the Contours File Store module, for example.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • File Path: File path of an XML file in which contours are saved.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • Contour List: Container in which the loaded contour is made available.
  • New Result: (Optional) TRUE if a new result is provided.
