EL4374 | EtherCAT Terminal, 2-channel analog input + 2-channel analog output, multi-function, ±10 V, ±20 mA, 16 bit, 2 ksps · 0 次阅读

Analog output connection

Voltage output 0..10 V / -10 ... +10 V

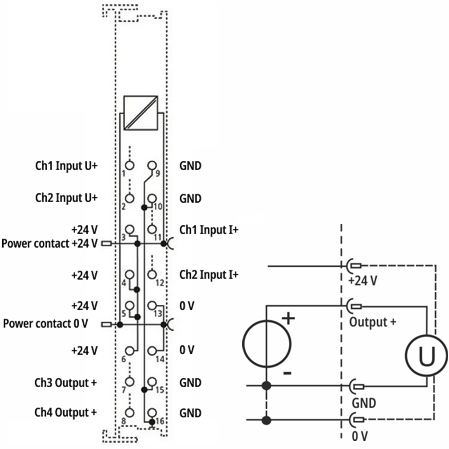

Fig.8: Connection example EL4374, voltage output, 2/4-wire

• 2-wire: 2-pin voltage output; 4-wire: with additional 24 V supply for the actuator

Current output 20 mA

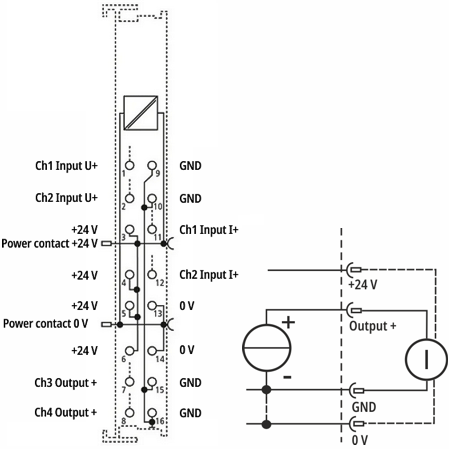

Fig.9: Connection example EL4374, current output, 2/4-wire

• 2-wire: 2-pin current output, 4-wire: with additional 24 V supply for the actuator
