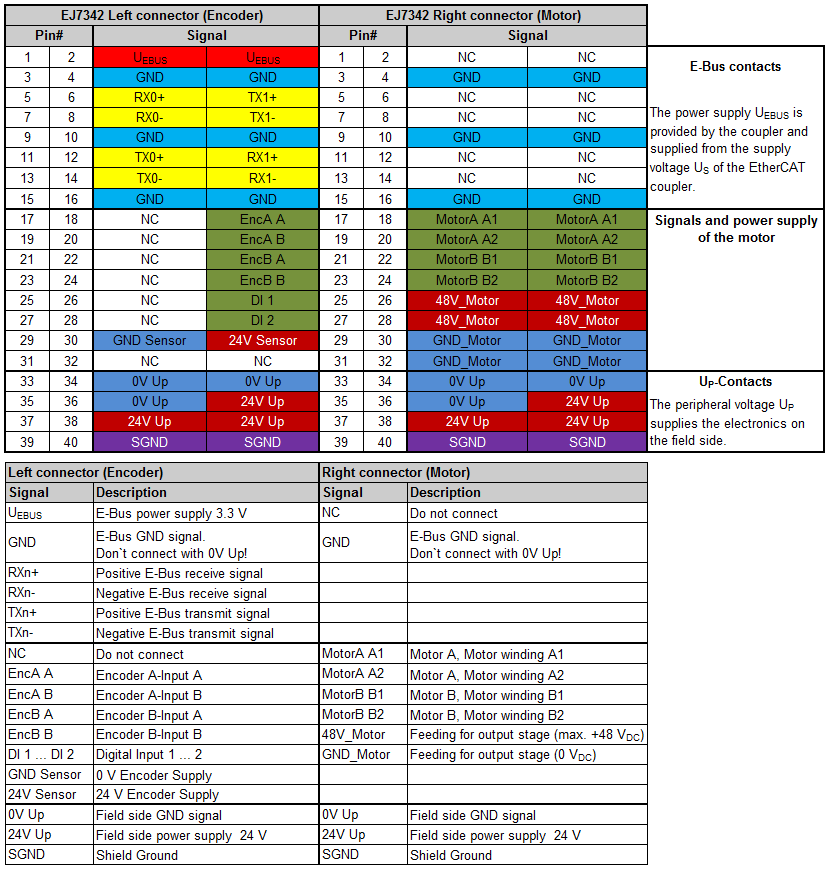

Pinout
The PCB footprint can be downloaded from the Beckhoff homepage.
Notice | ||
 | Damage to devices possible!
| |
 | Shielding Feedback signal, sensors and actuators should always be connected with shielded, twisted paired wires. |
