EJ8906-0005 - dimensional drawing

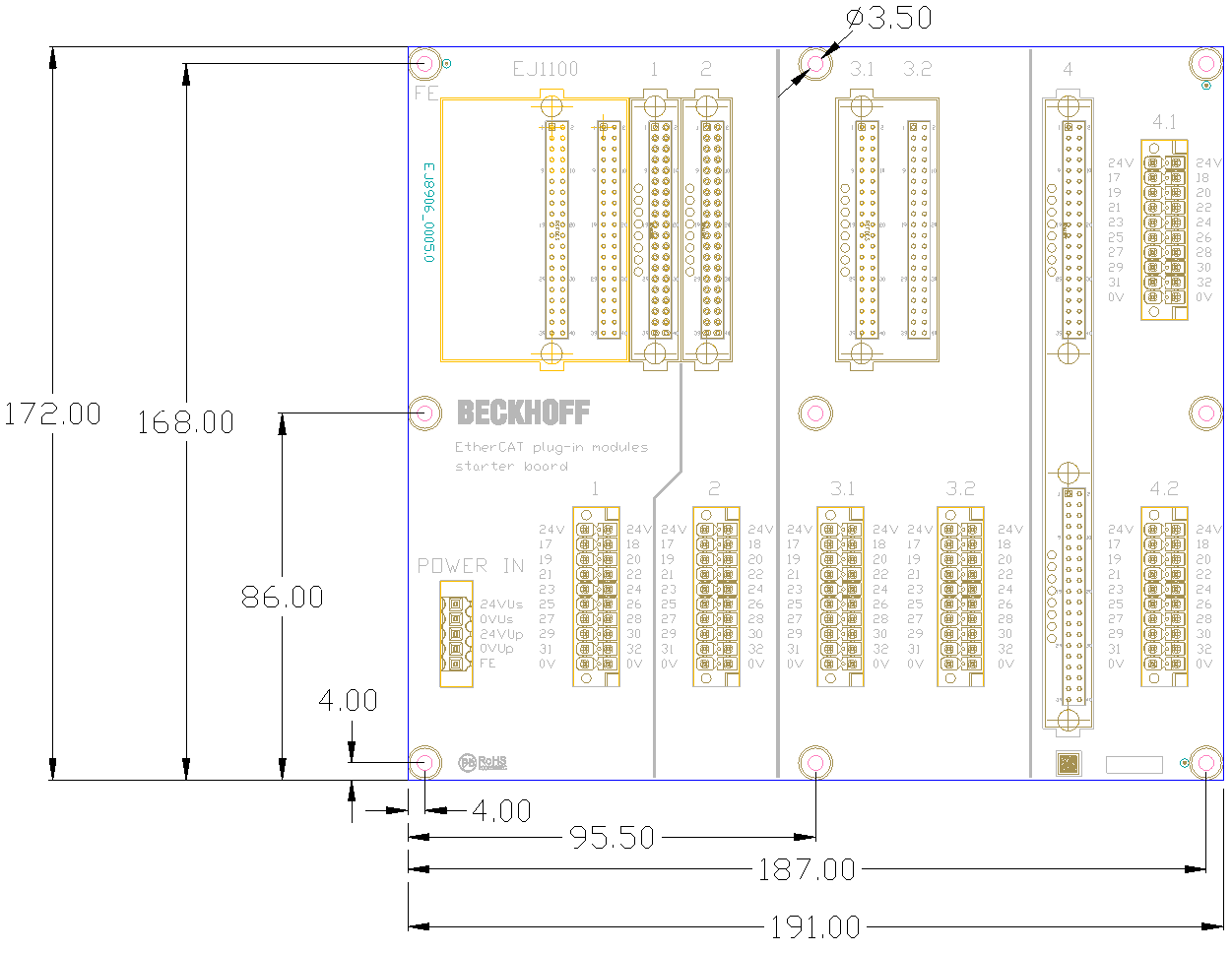

The following figure shows the dimensions of the EJ8906-0005 EJ starter board (all dimensions in mm).
Information on the dimensions of the EtherCAT plug-in modules can be found in chapter EJxxxx – dimensions)
Dimensions of the EJ8906-0005 EJ starter board (all dimensions in mm)
