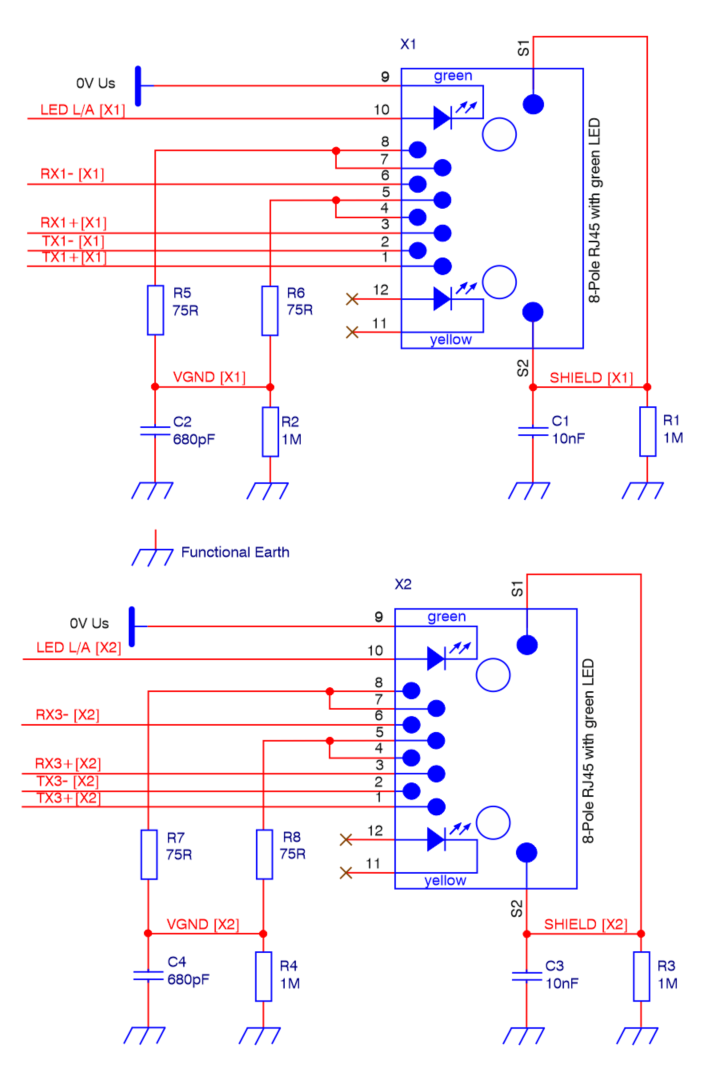

Network interface

• The RXn+, RXn- and TXn+, TXn- shall be routed as differential pairs.
• The impedance between the differential traces shall be 100 Ω.
• VGND [X1] and VGND [X2] shall be designed as local ground areas.
• The Link Activity LEDs shall be referenced to 0V Us
• The EMI (R1-R8, C1-C4) -circuits should be adapted to EMI requirements of the application.
