Real / virtual submodules

If these submodules have parameterization data they will be displayed as shown in the illustration below.

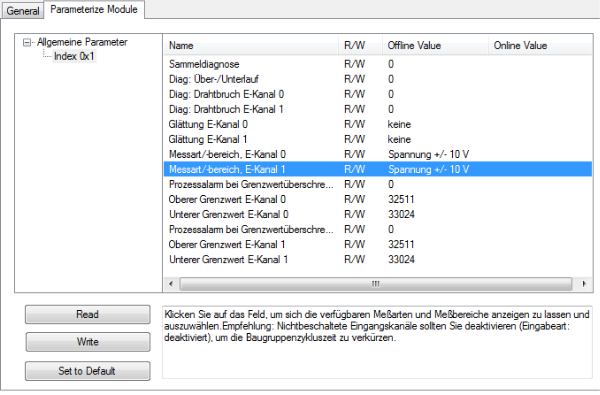

Real / virtual submodules 1:

Selection can be made here between the individual indices. The data can be read and/or written depending on the access method. The online values are updated when reading back. If a single index is selected, clicking Set to Default will set all values within an index to default; selecting individual values will reset only those values. The writable values can be changed by double-clicking on the corresponding line.
