3-point Valve Actuator

This module controls a 3-point Valve Actuator.

Settings

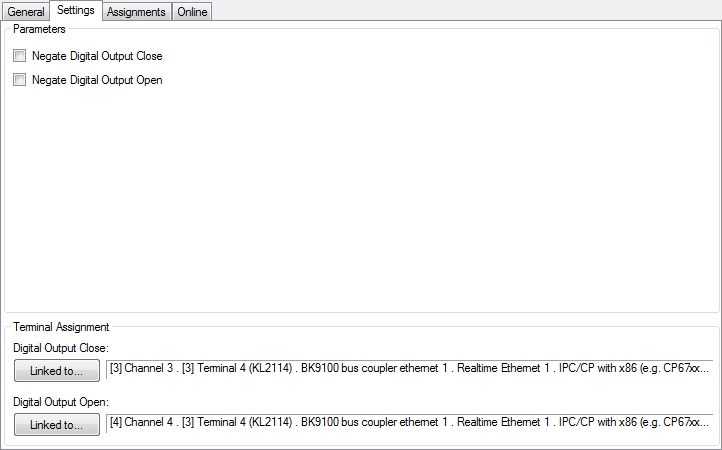

3-point Valve Actuator 1:

Parameters

  • Negate Digital Output Close: Inverts the control of the closing coil.
  • Negate Digital Output Open: Inverts the control of the opening coil.

Online

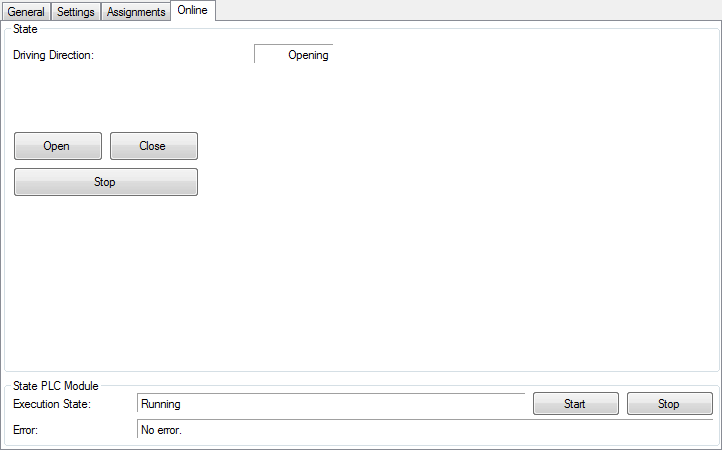

3-point Valve Actuator 2:

Commands

  • Open: Opens the valve. The open-output will be active, if not negated in the settings-menu.
  • Close: Closes the valve. The close-output will be active, if not negated in the settings-menu.
  • Stop: Both outputs will be deactivated, if they are not negated.

State

  • Driving Direction: Shows the actual state of the valve.

State PLC Module

  • Execution State: Shows if the module is running or stopped.
  • Error: In case of an error, the error code and the error parameter are displayed in this box.
  • Start/Stop: Starts/stops the module.
