TC1xxx | TwinCAT 3 Base

The TwinCAT 3 runtime consists of basic components that can be extended with functions.

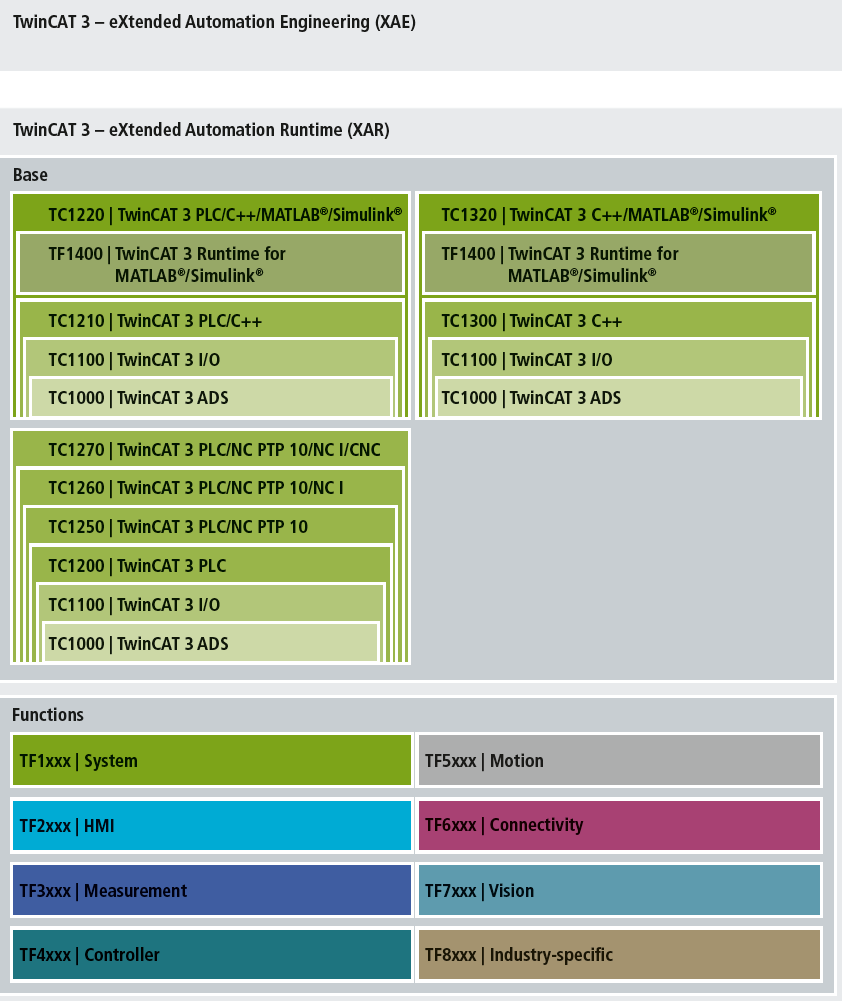

Basic components that build on each other and classification of the functions

	Runtime (-00pp)
	Economy	Economy Plus	Performance	Performance Plus	Mid Performance	High Performance	Very High Performance	Other
	10	20	30	40	50	60	70	8x	9x
TwinCAT Base
TC1000 TwinCAT 3 ADS	x	x	x	x	x	x	x	x
TC1100 TwinCAT 3 I/O	x	x	x	x	x	x	x	x
TC1200 TwinCAT 3 PLC	x	x	x	x	x	x	x	x
TC1210 TwinCAT 3 PLC/C++	-	-	x	x	x	x	x	x
TC1220 TwinCAT 3 PLC/C++/Matlab®/Simulink®	–	-	x	x	x	x	x	x
TC1250 TwinCAT 3 PLC/NC PTP 10	–	x	x	x	x	x	x	x
TC1260 TwinCAT 3 PLC/NC PTP 10, NC I	–	–	x	x	x	x	x	x
TC1270 TwinCAT 3 PLC/NC PTP 10, NC I, CNC	–	–	–	x	x	x	x	x
TC1275 TwinCAT 3 PLC/NC PTP 10, NC I, CNC E	-	-	-	x	x	x	x	x
TC1300 TwinCAT 3 C++	–	-	x	x	x	x	x	x
TC1320 TwinCAT 3 C++/Matlab®/Simulink®	–	-	x	x	x	x	x	x
TC1700 TwinCAT 3 Usermode Runtime	-	-	-	-	-	-	-	-
TC1701 TwinCAT 3 Usermode Runtime: External Control	-	-	-	x	x	x	x	x
TC1702 TwinCAT 3 Usermode Runtime: Fast As Possible	-	-	-	x	x	x	x	x
