CU2508 | Real-time Ethernet port multiplier · 0 次阅读

Dimensions

Dimensions without plugs (W x H x D)

Dimensions 1:

Space requirement in the control cabinet

  • The RJ45 connector increase the depth depending on their design and the Ethernet cable used.
  • Above the mounting rail an additional height of approx. 10 mm is required to enable latching of the switch onto the rail.
  • Take into account the recommended distances of 35 mm above and below the device (see chapter Installation positions).

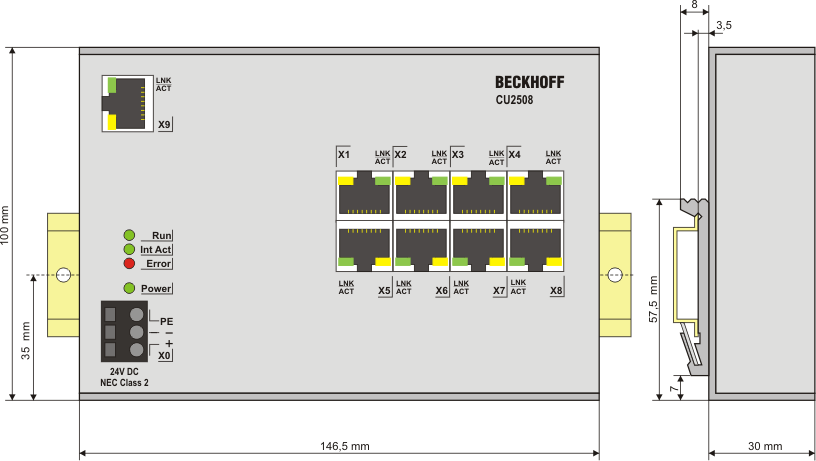

Dimensions 2:Fig.14: CU2508 dimensions
