Draw Circle

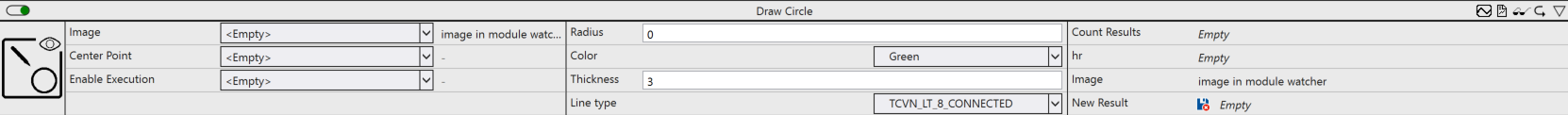

Draw Circle 1:

Draw a circle in the picture.

Optionally, a Boolean signal can be selected for the Enable Execution input so that the algorithm is only active if the value of the selected signal is TRUE.

Configuration options

  • Radius: Radius of the circle in pixels.
  • Color: Color of the circle.
  • Thickness: Line width. If the value is negative, the circle is filled.
  • Line Type: (Optional) Line type.

Output values

  • Count Results: Is incremented when a new result is provided.
  • hr: HRESULT error code that outputs the result of the processing.
  • Image: Initial image of the algorithm.
  • New Result: (Optional) TRUE if a new result is provided.
