EnOcean

EnOcean modules enable radio transmission without batteries or an external power supply in the transmitter. Supported EnOcean modules can be integrated by the KL6021-0023 or KL6581 via an EnOcean line.

Settings

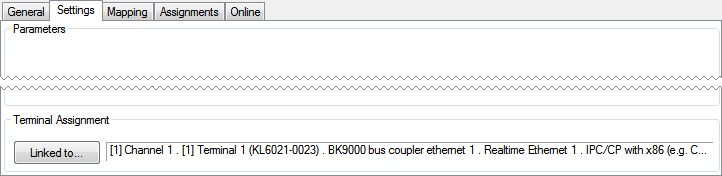

EnOcean 1:

Pressing the Linked to...-button opens a dialog, where a compatible channel of a terminal from the I/O devices can be assigned to this module. The state of the sensor now corresponds with this channel.

Mapping

EnOcean 2:

The list shows all sensors that are linked with the EnOcean-line.

  • Transmitter Id: Defines the unique transmitter id, specified by the company EnOcean.
  • Module Type: Describes the module type of EnOcean.
  • Linked Sensor: Shows which digital signal is configured as EnOcean-module and linked to the EnOCean-line.

Supports EnOcean module types:

  • PTM 100 - Pushbutton Transmitter Module
  • PTM 200 - Pushbutton Transmitter Module
  • PTM 250 - Pushbutton Transmitter Module
  • STM 100 - Sensor Transmitter Module
  • STM 250 - Wireless Magnet Contact

Further information can be found on the official EnOcean website.

Online

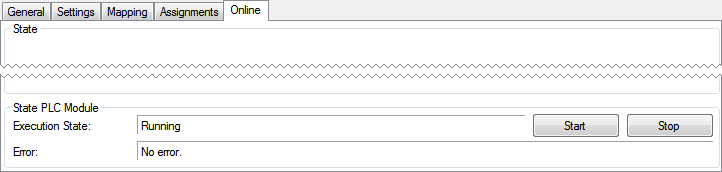

EnOcean 3:

State PLC Module

  • Execution State: Shows if the module is running or stopped.
  • Error: In case of an error, the error code and the error parameter are displayed in this box.
  • Start/Stop: Starts/stops the module.
