KM3701, KM3702, KM3712 | Pressure Measuring Modules · 0 次阅读

KM3701 - Application examples

WARNING

Risk of injury through electric shock and damage to the device!

Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals!

Tank systems

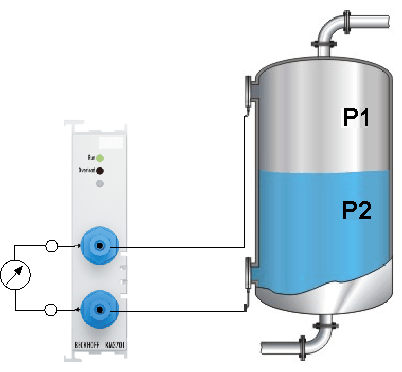

KM3701 - Application examples 1:
KM3701 - Application example for the fill level of tanks
  • Monitors tank filling levels and activates topping up when the level falls below a defined filling value
  • The pressure difference is an indicator for the filling level
  • No additional pressure gauges, switches and associated connection equipment are required

Filter systems, pipe constrictions

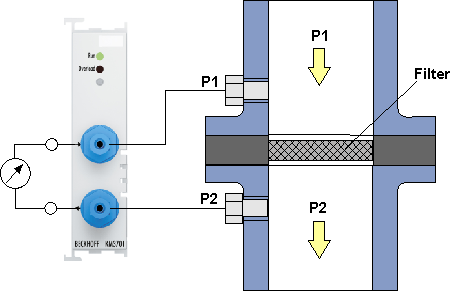

KM3701 - Application examples 2:
KM3701 - Application example for filter systems, pipe restrictions
  • Monitors the operating state of filters and screens
  • The pressure difference indicates the level of contamination
