Sync Manager (SM)

The scope of process data offered can be modified via the "Process Data" tab (see Fig. Process Data tab SM3, EL5102 (default) below).

A detailed description for setting the process data can be found in chapter EtherCAT subscriber configuration.

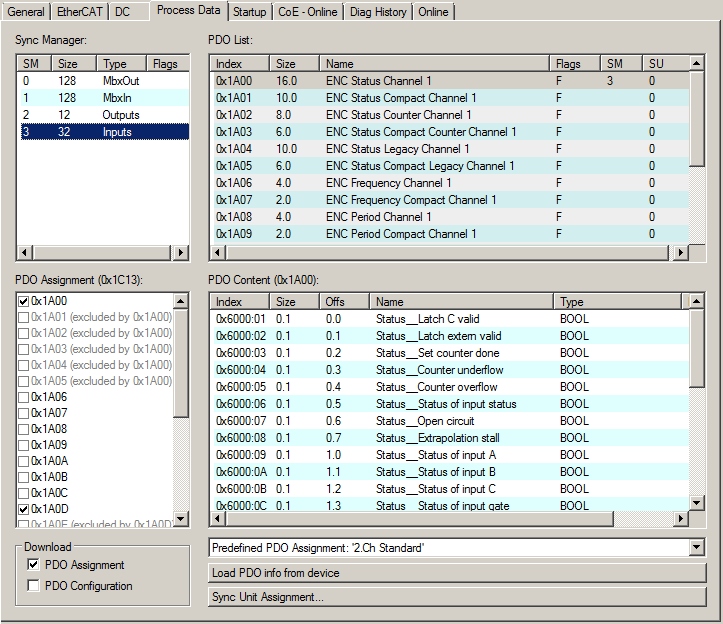

Fig.151: EL5102 - Process data SM3 tab (default)
