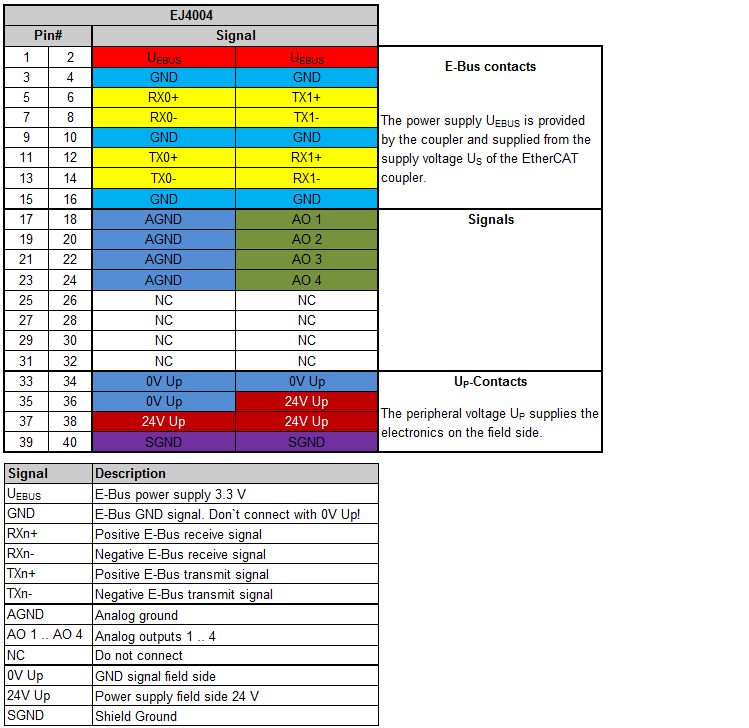

EJ4004 - Pinout
The PCB footprint can be downloaded from the Beckhoff homepage.
Note
Damage to devices possible!
- The pins named with “NC” must not be connected.
- Before installation and commissioning read the chapters Installation of EJ modules and Commissioning!
