Structure

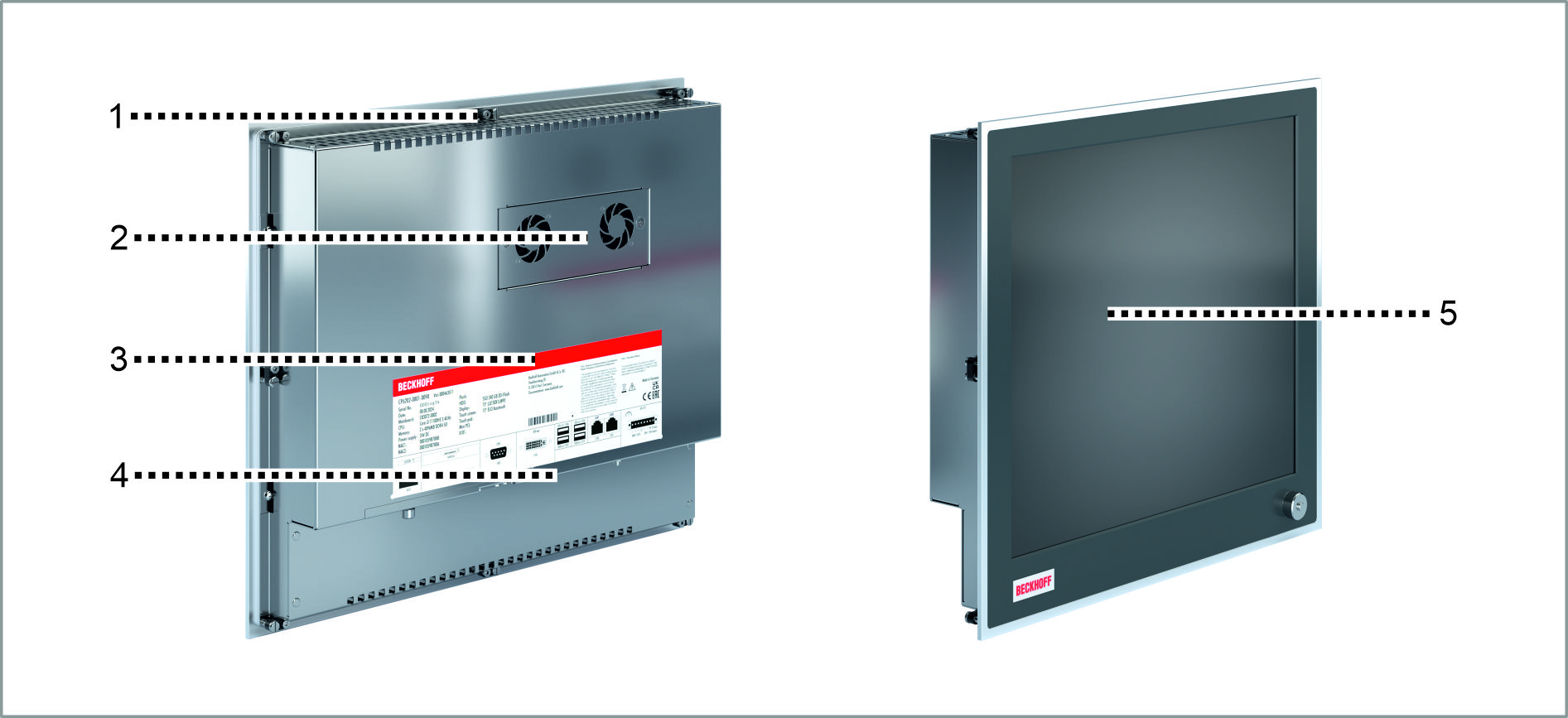

Figure 2 shows an example of the basic configuration of a CP62xx.
Fig.2: StructureNo. | Component | Description |
|---|---|---|
1 | Clamping lever | Mounting the device in the control cabinet wall |
2 | Fan cartridge | Optimum cooling of the inside of the device |
3 | Name plate | Information on the equipment of the device |
4 | Connection section | Access to interfaces |
5 | Display and touch screen glass | Operating the device |
